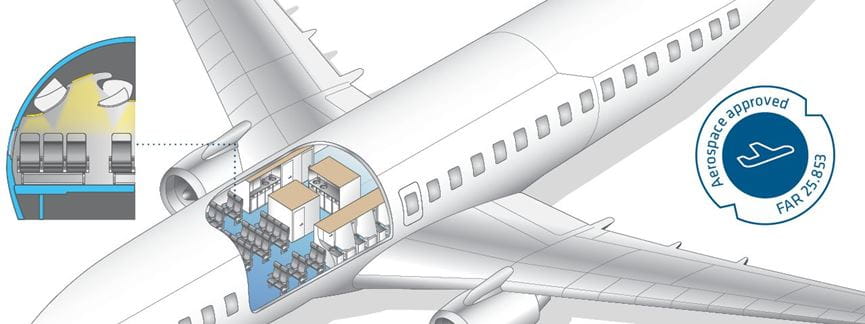

Plastics for aircraft interior

Flame resistant and tested according to FAR 25.853

Plastics represent an optimal solution for use in the aerospace industry due to their weight compared to metals.
To be considered for application in aircraft interiors, materials must meet various technical requirements. The requirements serve to limit the consequences of a fire in the cabin, thus maintaining passenger safety as much as possible.
To ensure fire protection in an aircraft, the U.S. Federal Aviation Administration (FAA) prescribes various fire tests (e.g. FAR 25.853). These tests demonstrate that materials used in aircraft meet specific performance criteria when exposed to heat or flame.
When looking at the industry's established thermoplastics, high performance materials such as PEEK, PEI, and PPS meet the flammability requirements (usually without modification). This is usually not the case with standard materials such as PA, unless they are modified with special additives.
For this reason, we have developed various plastics with a flame retardant additive. These materials meet the typical requirements of aircraft interiors and can be a cost-effective alternative to high performance materials if high temperature resistance or high mechanical strength is not required.

Aircraft interior materials in accordance with FAR 25.853:


HIGH PERFORMANCE PLASTICS WITH FLAMMABILITY CERTIFICATE

We have tested as well several high performance thermoplastics for flammability. Tested to either a 60 second vertical burn test standard or a 12 second vertical burn test standard, additional smoke emission and toxicity, and heat release tests can also be done if required. We offer a wide range of materials to cover the requirments for many applications in aircraft interior applications such as seats, lighting, galleys or cockpit equipment. Given our ability to share these extensive test results with our customers, these  “ready for use” materials truly open up new possibilities and opportunities for design improvements in commercial aircraft interiors and VIP aircraft interiors alike. For more information please contact us.

FLAMMABILITY, SMOKE DENSITY AND COMBUSTIBILITY TESTING

Materials for use in aircraft interiors must meet certain flammability requirements. However, it is the components' actual location in the aircraft that will determine whether only flammability is tested or if the full FST ("Fire", "Smoke" and "Toxicity") test is required to be performed (see below):

  • Flammability test with a 60-second and/or 12-second vertical fire sample.
  • Smoke density/smoke emission test
  • Combustion toxicity
  • Heat release
  • Flammability according to a 15-second horizontal fire test.

Ensinger's flammability test for plastics indicates the verified thickness, which is the thinnest wall thickness allowed on the finished part made of our plastics. To find out which test a particular material has passed, please refer to the material data sheets. Certificates of flammability testing will be provided at the time of order upon request.
The test results provided for our plastics can be used by our customers to determine an indication of the potential results of final FST tests on machined parts or their subassemblies. The results help our customers quickly and reliably select the right material for a particular application.
If you have any further questions, please feel free to contact us. If required, we can also carry out further tests. For example, we can test for additional levels of flammability upon request.


FAR 25.853 AND JAR 25.853

The requirements for the application of materials in aircraft and in particular in aircraft interiors are very similar worldwide and are clearly described by different regulatory authorities. Regulations for aircraft are primarily determined by two equivalent standards and are listed as follows by the associated agencies:

  • In the U.S.: FAR (Federal Aviation Regulation), which is part of Title 14 of the CFR (Code of Federal Regulations) issued by the FAA (Federal Aviation Administration).
  • In the EU: the CS ("Certification Specifications" - certification regulations) or JAR (equivalent to the FAR prepared for Europe) issued by EASA (European Aviation Safety Agency).


Large commercial aircraft are covered by section "25" for both standards, and aircraft interiors are covered by section "853". Therefore, we refer to "FAR 25.853", "JAR 25.853", "JAR-25, § 25.853", "FAR Part 25, § 25.853", "14 CFR Part 25", "CS 25.853".
For the definition of more detailed instructions and safety precautions, individual aircraft manufacturers have created their own internal documents, which are comparable in content with regard to the FST requirements.

  • BSS: "BOEING SAFETY STANDARD
  • AITM: "AIRBUS INDUSTRY TEST METHOD". These AITM are described in the document "AIRBUS DIRECTIVE", ABD0031


The various tests are described in Appendix F of FAR/CS 25. All materials must pass the vertical fire test. Some components for aircraft interiors, for example the ceiling, wall panels, partitions, fixtures for galleys, large cabinets, or baggage compartments in cabins, must simultaneously pass all smoke emission and toxicity tests and a heat release test.


CORRELATIONS BETWEEN FAR 25.853 AND AIRBUS AND BOEING STANDARDS

The following table identifies the interrelationships between the test methods in accordance with FAR 25.853, AITM and BSS.



Test description

FAR 25.853

Airbus ABD 0031
specification

Boeing
specification

Flammability
60 seconds Vertical

FAR Part 25, § 25.853 (a) and Appendix F, Part I,
para. (a)(1)(i)

 AITM 2.0002A  BSS 7230 F1
Flammability
12 seconds Vertical

FAR Part 25, § 25.853 (a) and Appendix F, Part I,
para. (a)(1)(ii)

 AITM 2.0002B  BSS 7230 F2
Flammability
15 seconds Horizontal

FAR Part 25, § 25.853 (a) and Appendix F, Part I,
para. (a)(1) (iv)

 AITM 2.0003  BSS 7230 F3


FAR Part 25, § 25.853 (a) and Appendix F, Part I
para. (a)(1) (v)

   BSS 7230 F4
 Heat Release

FAR Part 25, § 25.853 (d) and Appendix F, Part IV

 AITM 2.0006  BSS 7322
 Smoke Density

FAR Part 25, § 25.853 (d) and Appendix F, Part V

 AITM 2.0007A & B  BSS 7238
 Combustion Toxicity N/A  AITM 3.0005  BSS 7239
