PPSU Filament

Highly resistant & resterilisable filaments with medical grade variants

TECAFIL PPSU filaments are based on the amorphous base polymer polyphenylene sulfone. The PPSU filament is particularly resistant to hydrolysis and is suitable for repeated hot steam sterilisation. PPSU filament is considered heat resistant due to its high temperature resistance of up to 220°C (glass transition temperature). It also has low moisture absorption and high dimensional stability.

These properties make PPSU filaments ideal for use in demanding applications such as medical technology


Biocompatible, X-ray detectable, wide range of colours: PPSU filaments from Ensinger

In addition to the universally applicable TECAFIL PPSU natural, we offer PPSU filaments explicitly manufactured for the medical industry. With our medical grade filament portfolio, we offer biocompatible filaments that have been produced according to ISO 13485 and tested resp. evaluated for biocompatibility according to standard ISO 10993-1, -4, -5, -18 and meet the specified requirements for contact of up to 24 hours with skin and tissue and, if applicable, indirect contact with blood. TECAFIL PPSU MT is also available in x-ray detectable variants and different colours.

TECAFIL PPSU MT blue - 1,75 mm
TECAFIL PPSU MT XRO blue - 1,75 mm
TECAFIL PPSU natural - 1,75 mm

Case Studies & Applications

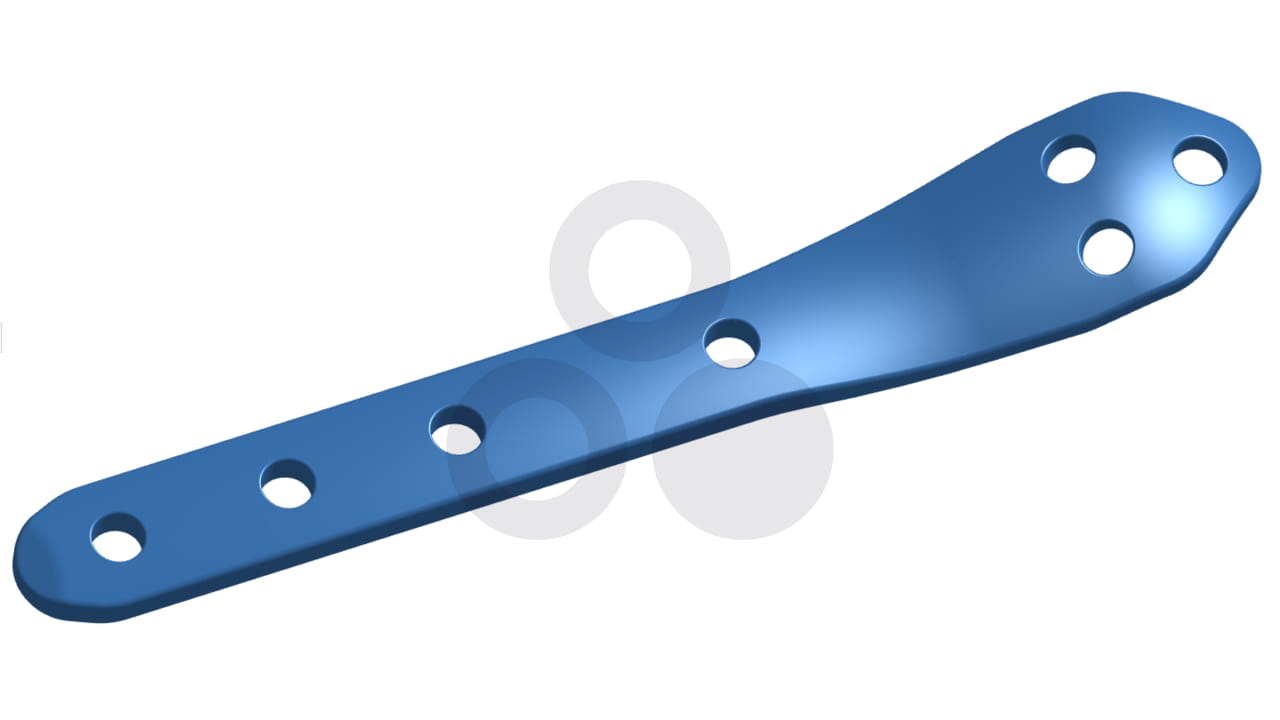

Trial bone plate

made of TECAFIL PPSU MT blue

3D printed trial bone plate

Bone plates play an important role in the treatment of fractures by holding the broken bone in place and allowing it to heal. Trial bone plates are used to help choose the right size bone plate. These can remain in the body for up to 24 hours and are subject to specific biocompatibility requirements. 3D printed TECAFIL PPSU MT blue trial bone plates meet these requirements and offer many advantages.
