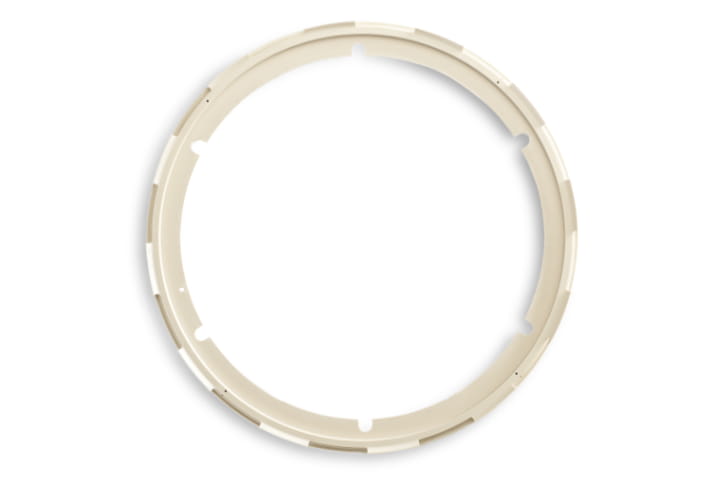

Wafer Clamp Ring

Semiconductor fabrication equipment relies on a vast range of different components made of high performance plastics. Among other parts, wafer rings or more precisely wafer clamp rings are commonly used for supporting and accurately positioning the wafer throughout various processing operations. Clamping the wafer is critical for maintaining precise processing tolerances, thus maintaining wafer yields.

Enabling accurate and clean wafer clamping

Components surrounding the wafer, such as clamp rings, need to withstand the stringent conditions and forces in the processing chambers. Depending on the processing conditions, the right material choice for the wafer clamp ring is essential for ensuring dimensional and mechanical stability, which directly impacts process performance and yield. Despite properties like mechanical strength, temperature resistance, chemical resistance, and in some cases, plasma resistance, the wafer ring material also needs to show high purity levels and low outgassing to minimize contamination and defects.

In wet processes, such as wet benches, single wafer cleaner, coater/developer or CMP, the components’ material requirements focus on chemical resistance, dimensional stability, purity, and strength. In most cases, the clamp rings are made of unfilled PEEK plastic, TECAPEEK SX natural or unfilled PPS plastic, TECATRON SX natural. PEEK is commonly used for parts exposed to higher temperatures and mechanical stresses, while PPS thermoplastic is the more economical alternative for parts with less stringent requirements. For clamp rings requiring more increased strength, PEEK CF30,  TECAPEEK CF30 black is extensively used. For electrostatic discharge requirements, electrically conductive materials like TECAPEEK ELS nano black and TECAPEEK ELS CF30 black are chosen as clamp ring material.

The broadest portfolio for clamp ring materials

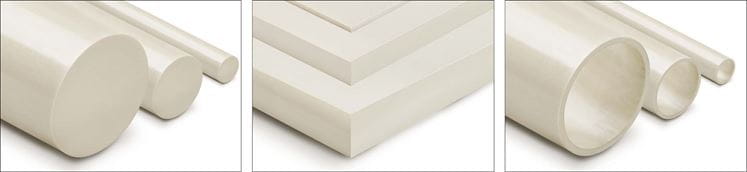

Depending on the design and size, clamp rings are either machined out of plates or tubes. Ensinger offers an extensive range of size variations for both plates and tubes, enabling machine shops to choose the closest stock shape size and save material waste and costs. Specifically, Ensinger offers the industry’s widest range of sizes for PEEK tubes and PPS tubes. In the case of machining rings out of plates, low internal stress levels in the material are critical for ensuring dimensional stability while machining.

TECATRON natural

Polyphenylenesulphide (PPS) - TECATRON - is a high temperature thermoplastic. PPS is a very resistant polymer with high mechanical strength and rigidity ...

TECAPEEK SX natural

TECAPEEK SX is a Victrex® PEEK polymer modified for Semiconductor industry applications.

TECAPEEK ELS CF30 black

This extruded PEEK reinforced with 30% carbon fibres offers high rigidity and stable electrical conductivity with a surface resistivity of ...

As a PPS supplier Ensinger’s unfilled PPS plastic sheets, TECATRON natural, have been developed specially for maintaining precise tolerances for critical parts like wafer clamp rings by reducing internal stresses to a minimum.

Moreover, the SX and ELS series are included in Ensinger's semiconductor grade portfolio, that is produced with stringent contamination controls and offering copy exact compliance. In this way, Ensinger ensures the highest level of cleanliness and quality performance consistency.


Reducing Ring Costs - find the best fitting size

With our PPS material TECATRON SX natural and PEEK material TECAPEEK SX natural Ensinger offers a wide range of tube dimensions for the semiconductor industries demands. In addition to a wide range of tube sizes in stock, custom order dimensions are available on request.

Wafer size

06" (150 mm)

08" (200 mm)



12" (300 mm)

Dimensions (OD / ID)



   180 / 125  230 / 150  280 / 210  340 / 260

 180 / 130  230 / 180  285 / 180
 340 / 310
   180 / 140  230 / 190  285 / 190    350 / 300
   180 / 150  230 / 195  285 / 195    360 / 290
   180 / 160  230 / 200  285 / 200    360 / 295
   185 / 125  238 / 210  285 / 210
 364 / 260
   185 / 130  250 / 180  285 / 220


 185 / 140  250 / 190  300 / 180
   185 / 150  250 / 195
 300 / 190


 185 / 160
 250 / 200  300 / 195

 190 / 125  250 / 210  300 / 200
   190 / 130  250 / 220  300 / 210
   190 / 140  255 / 180  300 / 220
   190 / 150  255 / 190  305 / 180
   190 / 160  255 / 195  305 / 190
   200 / 125  255 / 210  305 / 195
   200 / 130  255 / 220  305 / 200

 200 / 140
 277 / 180  305 / 210
 200 / 150  277 / 190  305 / 220
   200 / 160  277 / 195
   200 / 175  277 / 200
   210 / 125  277 / 210
   210 / 130  277 / 220
   210 / 140  280 / 180
   210 / 150  280 / 200
