Plastics that go
beyond the shore

Plastic material solutions for the oil and gas industry

The oil and gas industry demands high temperature, high pressure (HTHP), high mechanical strength and chemical resistance materials, suitable for the most extreme environments. Modern technical plastics have a major contribution to make towards improving existing solutions in the oil and gas industry due to state-of-the-art materials that offer a greater range of benefits.

 Ensinger has invested heavily in research and development to find innovative solutions to new technical challenges. With expertise in developing and manufacturing high performance and engineering plastic materials, Ensinger’s product portfolio has been enhanced to meet the specific requirements of the oil and gas industry, suitable for a wide range of applications.

With extensive experience in the oil and gas sector, Ensinger works closely with customers to achieve the optimum solution to suit their application's requirements. Technical material experts can provide customers with a qualified material recommendation, which can be confirmed by practical testing.

Current systems in place in the oil and gas sector largely use modern materials such as TECASINT (polyimide), TECAFLON (PTFE), TECAST (PA 6 C) and TECAPEEK (PEEK). The defined electrical properties of these polymers enable specific design of components. In addition to this, Ensinger’s TECAPEEK (PEEK) products are tested in accordance with EN ISO 23936-1 and NORSOK M-710, which verifies the material's resistance to the severe conditions of the environment it will be exposed to. Typical applications such as hydrophone housing, seals, valve seats, back-up rings, bushings and gears can benefit from the weight reduction, corrosion resistance, thermal de-coupling and minimized noise emissions provided by these materials.

Benefits to THE Oil and Gas industry

Custom sizes - or just large

Ensinger also has extensive experience in the field of PEEK tube, offering a wide range of standard tube sizes and wall thicknesses. Custom sizes are also available, with the ability to adapt to large dimensions. In addition to this, the material blend can be customized by adding fillers and additives to suit the needs of specific applications. A variety of applications in the oil and gas industry can benefit from Ensinger’s PEEK tubes due to their outstanding properties.

Only the highest standards are good enough for us

Our TECAPEEK (PEEK) products are tested according to ISO 23936-1 and NORSOK M-710.

We are where you are!

Ensinger’s facilities have been strategically placed globally to ensure that our materials are closer to our customers.

Low weight and increased lifetime

Good resistance to common fluids, no corrosion, high thermal resistance, good wear resistance, and low friction are properties our materials hold that contribute to reduced maintenance costs and increased equipment lifetime. Therefore, the use of our low weight polymers can reduce energy costs and improve performance and efficiency.

Solutions for THE Oil and Gas industry

ISO 23936-1 and NORSOK M-710 compliant materials

Ensinger’s TECAPEEK (PEEK) products are able to achieve compliance for use in highly demanding oil and gas applications in accordance with ISO 23936-1:2009 and NORSOK M-710, Edition 3.
Details

Good for bearings, friction and wear

For applications such as bearings, where one part slides over another, there is often extreme wear. Thermoplastics work well in these applications, where low friction is crucial.
Details

Heat resistant plastic materials

Ensinger offers a wide range of high performance plastics suitable for the most demanding environments with long term maximum usage temperatures up to 300 °C, depending on the application.
Details

Machinable Plastics for THE Oil and Gas Industry

TECAPEEK natural

 Polyetheretherketone (PEEK) - TECAPEEK natural is a high performance, high temperature, semi-crystalline thermoplastic manufactured by Ensinger...

TECAPEEK GF30 natural

 This is a special 30% glass filled PEEK modification that Ensinger manufactures under the name TECAPEEK GF30 natural.

TECAST T natural

 TECAST T natural cast nylon offers a combination of good mechanical properties, excellent bearing and wear characteristics, and the large-size capabilities of the casting process.

TECAFORM AH natural

 TECAFORM AH natural acetal is an unfilled porosity free POM-C with a unique balance of physical properties not available in most other thermoplastics.
All plastics for oil and gas

Oil and Gas Industry CASE STUDIES

Hydrophone Housing

made of TECAFORM AD

Effective materials for hydrophone housings
In the field of oil and gas exploration, seismic surveys are performed to locate and determine the size of oil and gas pockets. The most common technique used to determine possible deposits is using highly sensitive hydrophones. Hydrophone strings consist of thousands of linked individual hydrophones, encased in lubricant filled tubing. These hydrophones are used to record sound waves that are bounced off the ocean floor, which provide information on rock formations and possible deposits.
Connectors

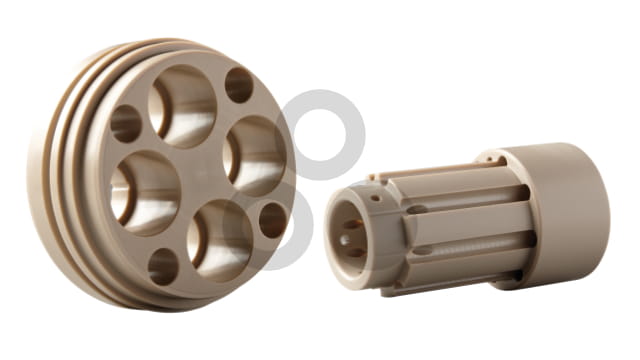

Electrical Connectors

made of TECAPEEK

Reliable plastics for Electrical Connectors

Throughout the oil and gas production industry, the transportation of electricity is a key factor. This electricity is transmitted using a network of electrical connectors. These electrical connectors are subjected to the aggressive operational environment as well as potentially high pressures and temperatures.
Backup rings

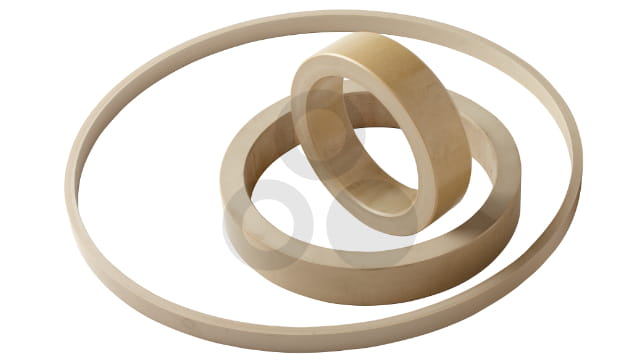

Seals and Back up Rings

made of TECAPEEK

Withstand extreme temperatures and chemicals
In the oil and gas industry, oil seals are used to prevent dust, dirt, water and any other harmful substances from entering and damaging machinery. Seals are a vital component to help protect various components such as tight-fitting ball, sleeve and roller bearings. It is vital to ensure the most appropriate material is used to produce seals, depending on the environment they will be operating in, as different environments may require materials with different degrees of resistance to chemicals and temperatures.

Frequently Asked Questions on Oil and Gas Plastic Material

  • We offer semi-finished products that are compliant for highly demanding oil and gas applications. The tests are performed according to EN ISO 23936-1:2009 as well as NORSOK M-710, Edition 3. Find out more:

    FAQ PAGES
  •  Yes, Ensinger does gurantee traceability on an order-specific basis to ensure highest standards of safety. Find out more:
    FAQ PAGES
  • As a result of the joint industry effort to prepare EN ISO 23936-2 dealing with qualification of elastomers, NORSOK standard M-710, Edition 3 refers to the requirements in EN ISO 23936-2:2011 for elastomers. For thermoplastic materials, the qualification requirements are given directly in the NORSOK standard and aligned with requirements and format in EN ISO 23936-2. the thermoplastics part EN ISO 23936-1:2009 is considered as informative.

  • Both standards, EN ISO 23936 and NORSOK M-710 specify testing with distilled water, although using seawater might tend to get nearer to the real environment. According to comparison tests performed by Victrex, using both seawater and distilled water in various ageing tests, no major differences between the two environments could be observed.
  • There does not exist, nor are there currently plans to introduce an NTS/NORSOK qualification approval strategy or public listing of qualified manufacturers in this regard.
